適用于氧化礦，含泥量大，浮選回收率低回液分離困難的礦石，采用全泥氰化炭漿工藝流程。
By adopting the full silt CIP technological process, this equipment is applicable for oxidized ore and the ores with high silt content and low floatation recovery that are difficult to separate.
| 日處理量Capacity | 100t/d | 150t/d | ||
|---|---|---|---|---|
| 產品名稱 | 型號規格model | 數量 | 型號規格model | 數量 |
| (臺) | (臺) | |||
| 顎式破碎機 Jaw crusher | PEV430×650 | 1 | PEV500×900 | 1 |
| 顎式細碎機 Fine Jaw crusher | PEX150×750 | 1 | PEX200×750 | 1 |
| 槽式給礦機 Chute feeder | CG600×600 | 1 | CG600×600 | 1 |
| 高頻振網篩 High frequency Vibrating screen | 2MVS1225 | 1 | 2MVS1235 | 1 |

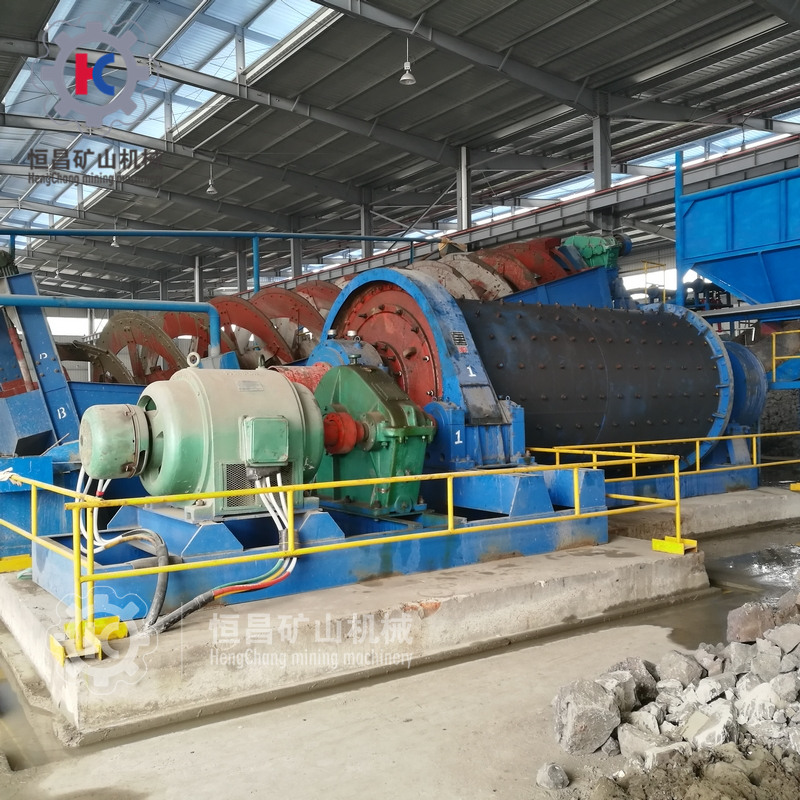

| 節能軸承球磨機 Conservation energy ball mill | MQSZ1530 | 1 | MQSZ1836 | 1 |
| 單螺旋分級機 Spriral classifier | FG-12 | 1 | FG-15 | 1 |
| 濃密機 Thickener | NZ-9 | 1 | NZ-12 | 1 |
| 提升攪拌槽 Lifting agitation tank | XBT1500 | 1 | XBT-2000 | 1 |
| 雙葉輪浸出槽 Double impeller leaching and agitating tank | SJ3035 | 1 | SJ3540 | 1 |
| 雙葉輪吸附槽 Double impeller aolsorber | XF3035 | 6 | XF3540 | 6 |
| 直線振動篩 Linear vibrating screen | ZS0415 | 2 | ZS0612 | 2 |
| 空氣壓縮機 Air pressure machine | LEK-C | 1 | LEK-C | 1 |
| 解析電解 Disorption electrowinning set | 430kg/批 | 1 | 430kg/批 | 1 |
| 膠泵 Sand pump | 2PNJ | 6 | 3PNJ | 6 |
| 金泥洗槽 Acid wash tank | SC1115 | 1 | SC1115 | 1 |
| 皮帶輸送機 Conveyor | DTⅡB500×20 | 3 | DTⅡB500×20 | 3 |
| 日處理量Capacity | 200t/d | 300t/d | ||
|---|---|---|---|---|
| 產品名稱 | 型號規格model | 數量 | 型號規格model | 數量 |
| (臺) | (臺) | |||
| 顎式破碎機 Jaw crusher | PEV600×900 | 1 | PEV600×900 | 1 |
| 顎式細碎機 Fine Jaw crusher | PEX200×1000 | 1 | PEX200×1000 | 1 |
| 槽式給礦機 Chute feeder | CG980×1240 | 1 | CG980×1240 | 1 |
| 高頻振網篩 High frequency Vibrating screen | 2MVS2035 | 1 | 2MVS2035 | 1 |
| 節能軸承球磨機 Conservation energy ball mill | MQSZ2136 | 1 | MQSZ2136 | 1 |
| 單螺旋分級機 Spriral classifier | FG-20 | 1 | FG-20 | 1 |
| 濃密機 Thickener | NZ-15 | 1 | NZ-15 | 1 |
| 提升攪拌槽 Lifting agitation tank | XBT2500 | 1 | XBT2500 | 1 |
| 雙葉輪浸出槽 Double impeller leaching and agitating tank | SJ4045 | 1 | SJ4045 | 1 |
| 雙葉輪吸附槽 Double impeller aolsorber | XF4045 | 6 | XF4045 | 6 |
| 直線振動篩 Linear vibrating screen | ZS0718 | 2 | ZS0718 | 2 |
| 空氣壓縮機 Air pressure machine | LEK-C | 1 | LEK-C | 1 |
| 解析電解 Disorption electrowinning set | 800kg/批 | 1 | 800kg/批 | 1 |
| 膠泵 Sand pump | 4PNJ | 6 | 4PNJ | 6 |
| 金泥洗槽 Acid wash tank | SC1316 | 1 | SC1316 | 1 |
| 皮帶輸送機 Conveyor | DTⅡB650×20 | 3 | DTⅡB650×20 | 3 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
