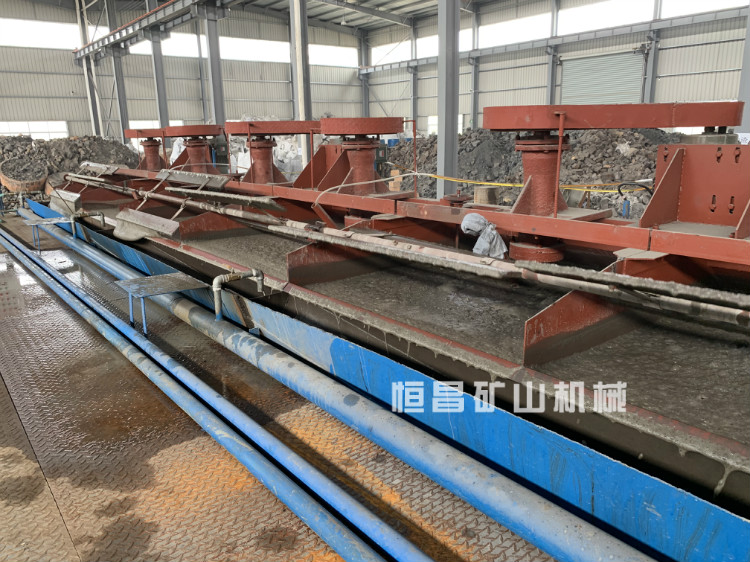

XJ、SF型自吸氣機械攪拌式浮選機
Mechanical agitating flotation machine with auto air suction

國家行業標準JB/T9038

SF型浮選機采用了結構新穎的前傾式槽體,雙葉片水輪,配有導流管和假底裝置，槽內礦漿按固定的流動方式進行上、下雙循環，有利于粗粒礦物的懸浮，可自吸空氣，自吸礦漿，不需泡沫泵。

New siructure of impeller is backwards inclined double impellers equipped with honeyconb duct and dummy bottom.Therefore,the slurry in the tand will cycle upward and downward in a fixed flow manner,which is helpful to the suspension of those coarse particles.Airand slurry are naturally sucked without need for foam pump.

型號規格Model	容積Volume	槽體尺寸 Cell size	葉輪直徑Impeller Dia.	葉輪轉速I(mǎi)mpeller speed	處理能力Capacity	功率Power	單槽質量 Singe cell weight
型號規格Model	m³	mm	mm	r/min	m³/min	kw	kg
XJ-3	0.35	700×700×700	300	483	0.18-0.4	2.2/0.55	430
XJ-6	0.62	820×900×850	350	400	0.3-0.9	3/1.1	755
XJ-11	1.1	1100×1100×1000	500	330	0.6-1.6	5.5/1.1	1416
XJ-28	2.8	1750×1600×1100	600	280	1.5-3.5	11/1.1	2113
XJ-58	5.8	2200×2200×1200	750	240	3--7	22/1.5	3400
SF-0.37	0.37	700×700×750	296	386	0.2-0.4	1.5/0.55	468
SF-0.7	0.7	820×900×950	350	400	0.3-0.9	3/1.1	805
SF-1.2	1.2	1100×1100×1100	450	312	0.6-1.2	5.5/1.1	1373
SF-2.8	2.8	1700×1600×1150	550	268	1.5-3.5	11/1.5	2138
SF-4	4	1850×2050×1200	650	220	2--4	15/1.5	2582
SF-8	8	2200×2900×1400	760	191	4--8	30/1.5	4129
SF-10	10	2200×2900×1700	760	191	5--10	30/1.5	4486
SF-16	16	2850×3800×1700	760	191	5--16	30×2/1.5	8320
SF-20	20	2850×3800×2000	760	191	5--20	30×2/1.5	9828
