試驗室XMB(Q)-Φ600×1200型球（棒）磨機技術參

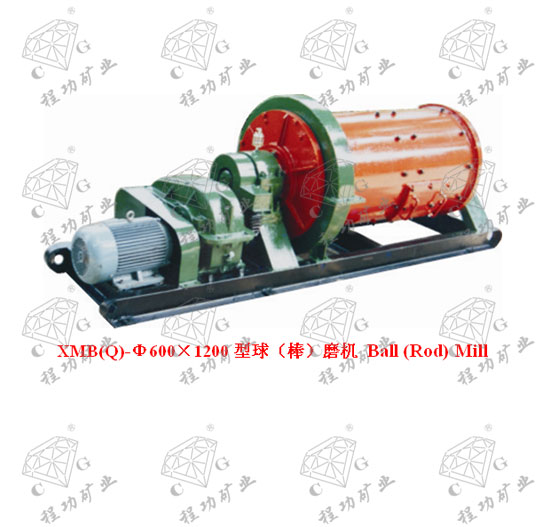

XMB（Q）-Φ600×1200棒（球）磨機是一種濕式磨機，適應于礦山、地質、煤炭、建材及水電部門粉碎物料之用，尤其適應于小礦山磨碎物料之用。結構緊湊，整機性能好，便于運輸和安裝，特別是適用于小型流動性選礦廠。

XMB（Q）-Φ600×1200 ball (rod) mill is a kind of wet grinding machine. Such mills are used to crush materials in sectors such as mine, geology, coal, building materials, and water and electricity, and especially to crush materials in small mines. They enjoy compact structure and good performance, and are easy for transportation and installation. They are especially used in small ore dressing plants dealing with materials with good flowability.

型號規格 Model	單位Uite	XMB(Q)-Φ600×1200
筒體直徑 Drum dia.	mm	φ600
筒體長度 Length	mm	1200
有效容積 Volume	m³	0.267
磨機轉速 Speed	r/min	31-43
給料粒度 Feed size	mm	15-25
出料粒度 Output size	mm	0.074-0.5
電動機功率 Power	kw	5.5-7.5
處理量 Capacity	kg/h	80-600
外形尺寸 Overall dimensions	mm	2983×938×930
重量 Weight	kg	2000
